/Products/11.Plumbing/Filters/Filter Cartridges Standard 20in/20" Spun Polypropylene Multi-Layer Filter Cartridge. 25 Micron.20/case

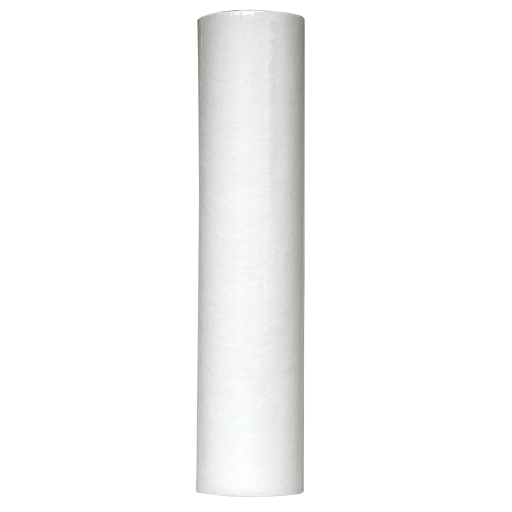

20" Spun Polypropylene Multi-Layer Filter Cartridge. 25 Micron.20/case

Product ID: WFC-20-SP-25

Selected accessories will also be added to cart
Quantity:
The standard specification meets most of the housings in the market. Gradient four layer (outside-in), varied micron rate filter structure to capture particles effectively and prolong cartridge life. Cartridge can achieve up to two times that of the double layers. Spun filters consist of 100% high purity polypropylene which is surfactant free, binder free and adhesive free. They have good chemical resistance and is not prone to bacterial attack.
The flow rates listed are based on their maximum efficiency. They can be used with flow rates above what is listed but will not filter as effectively.
Flow Rate Up to: 5.3 GPM

Size 2-1/2" x 20"

Filter Media Polypropylene

Micron Rating 25.00

Temperature Range Up to 125°F (52°C)

Pressure Drop @ Flow Rate 1 PSI @ 30 GPM

Product Model Short Description Spun Polypropylene Cartridges

Width: 2.48 in
Height: 2.48 in
Length: 20.00 in
Weight: 0.53 lb
